STANDARD LINEAR BOOTH: One or more standard ten-foot by ten-foot booth units (10’ x 10’ / 3m x 3m) in a straight line.

• Hanging signs are not permitted above linear booths.


• Back 5’ (1.52m) of booth has a maximum height of 8’ (2.44m).


• Front 5’ (1.52m) of booth has maximum height restriction of 4’ (1.22m) on all materials – structure, product and/or equipment.


• Displays are limited to 4’ in height (1.22m), in the front half of each booth. Machinery, equipment, or products may not be shown on a raised/built-up platform or counter if they interfere with the height restrictions. If your display exceeds 4’ in height (1.22m) it is required that you place it away from the 5’ x 10’ sightline area in the front of the booth in order to provide a “see-through” lane for neighboring sponsors.

EXTENDED HEADER BOOTH: a linear booth 20’ (6.10m) or longer with a center extended header. All guidelines for linear booths apply to extended header booths, except that the center extended header has a maximum height of 8’ (2.44m), a maximum width of 20% of the length of the booth, and a maximum depth of 9’ (2.7m) from the back wall.

• If facility is not carpeted, all booths must be fully carpeted for safety and aesthetic reasons.

(Examples of standard linear & extended header booths below)

EXAMPLE OF STANDARD LINEAR BOOTHS:

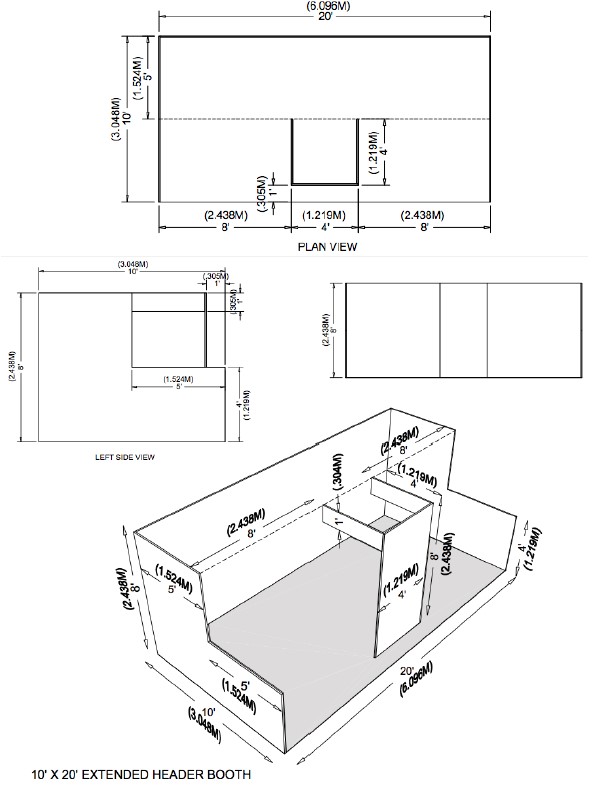

EXAMPLE OF EXTENDED HEADER BOOTHS:
